factory supply disk shape ball tansfer unit

FOB Reference Price:Get Latest Price
US $1-50 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
xingli
Model Number:
ball tansfer unit
Material:
Steel
Application:
disk shape ball tansfer unit conveyor components
Load capacity:
100kg
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package
Port
shanghai
Lead Time :
Shipped in 15 days after payment

 flexible conveyor.jpgHuzhou Motorized Drum Co.,Ltd is a global leading manufacturer of the key products for automatic material handling system & logistic conveying system. We have more than 30 years experience for motorized drum production and own morn than 40 patents, plant building area of 25000 square meters.


 Here is the detail show for conveyor components ball transfer unit

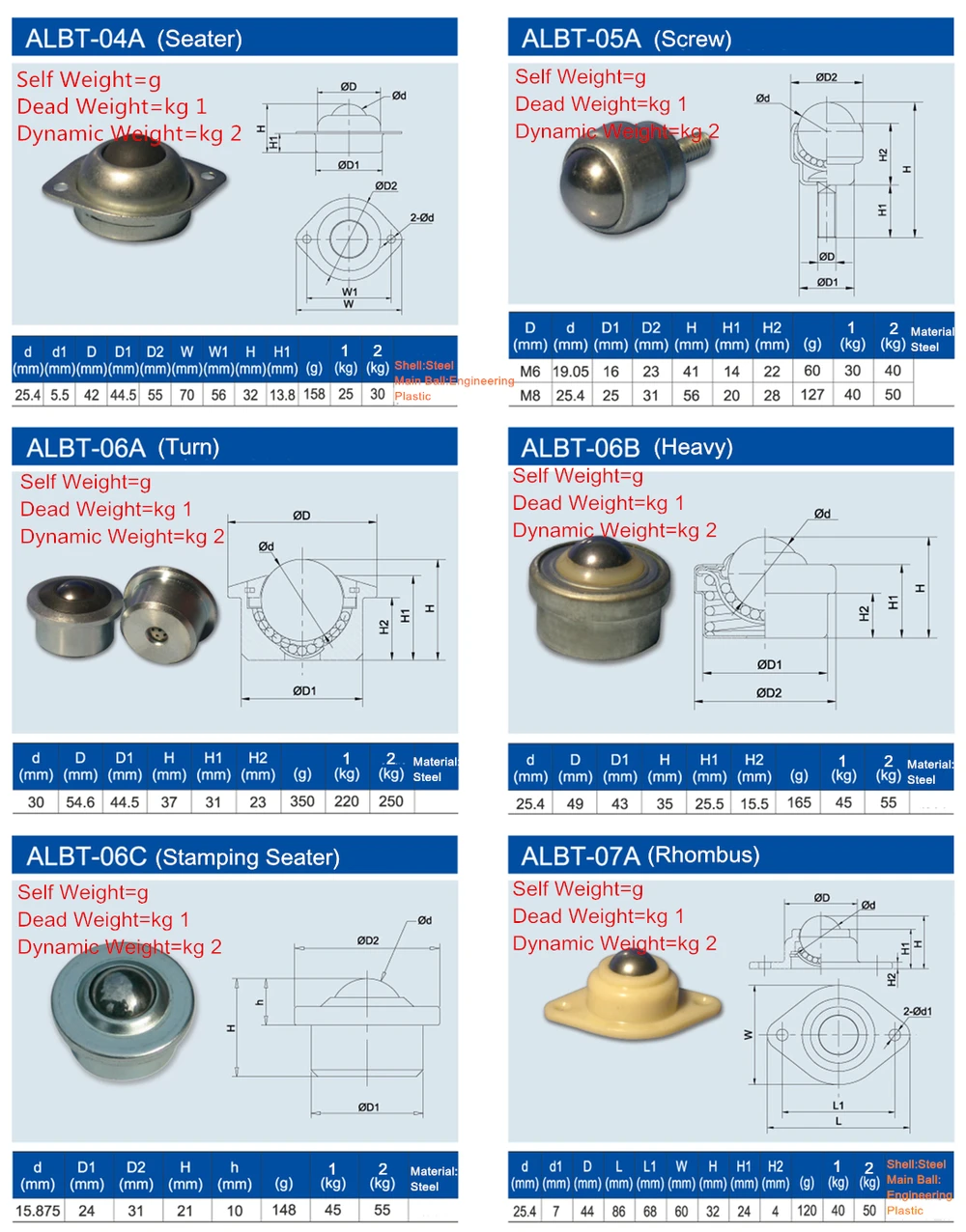

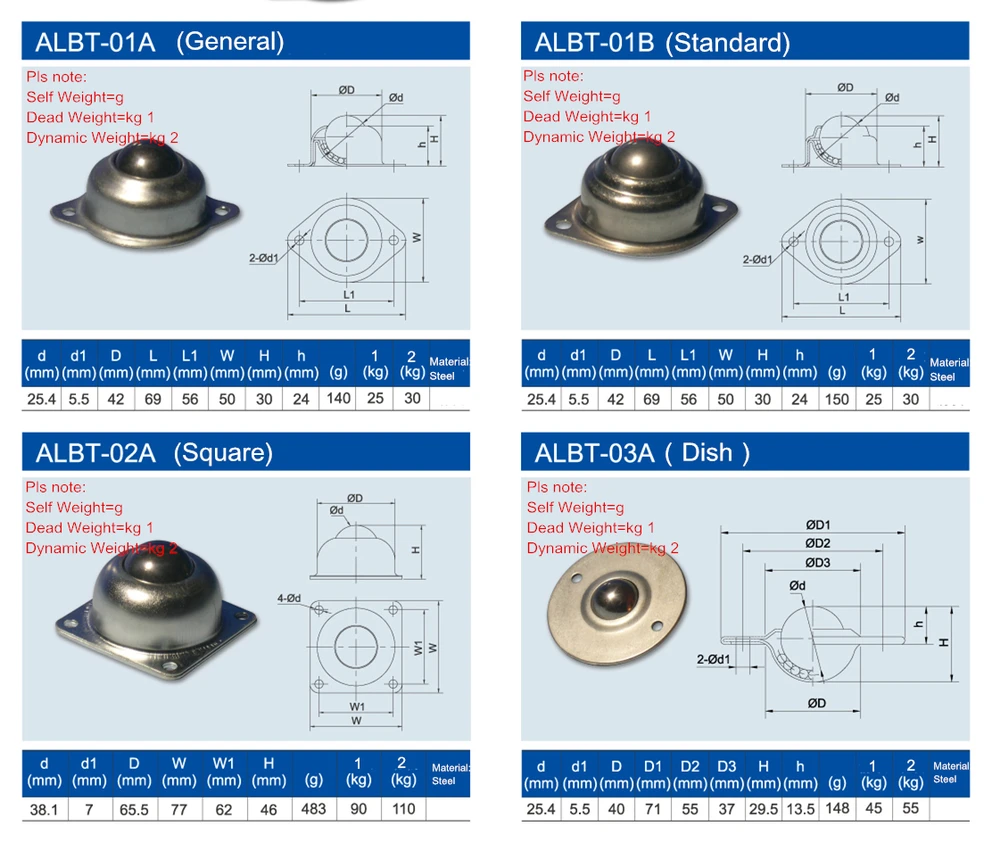

 Ball transfer:

Feature:

   Ball transfer units are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side.



  Typically the design involves a single large ball supported by smaller ball bearings.They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system.



 They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.

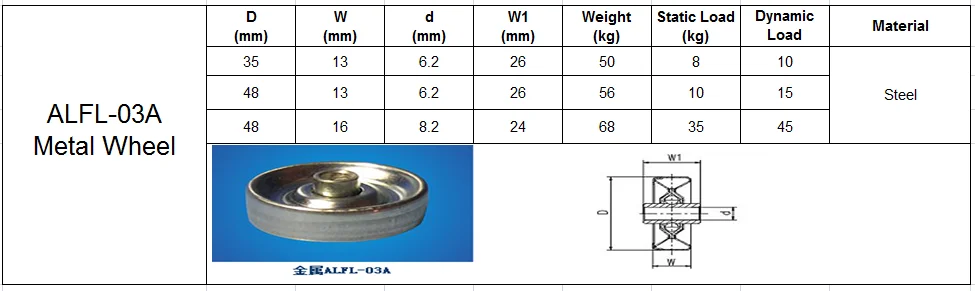

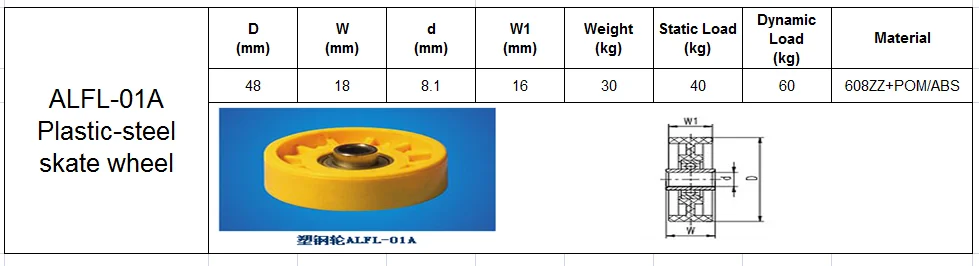

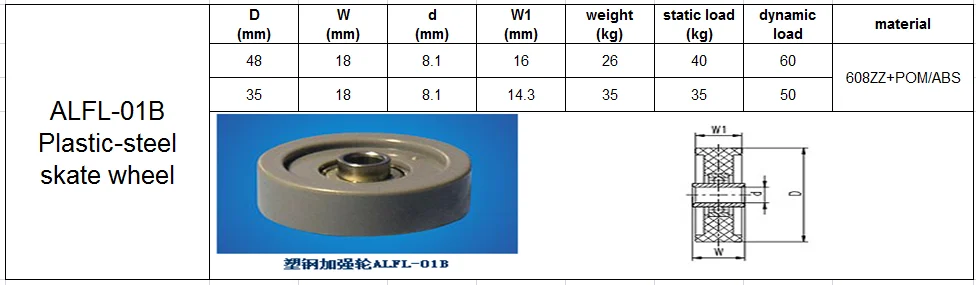

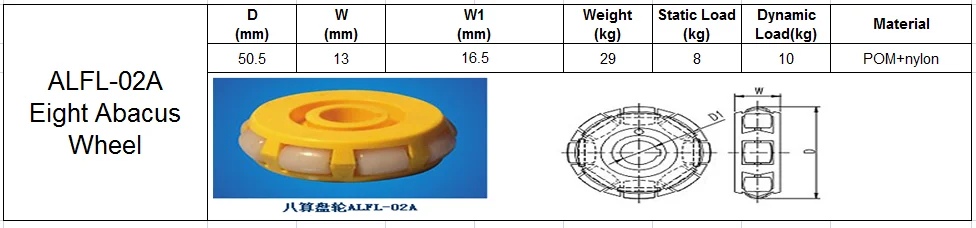

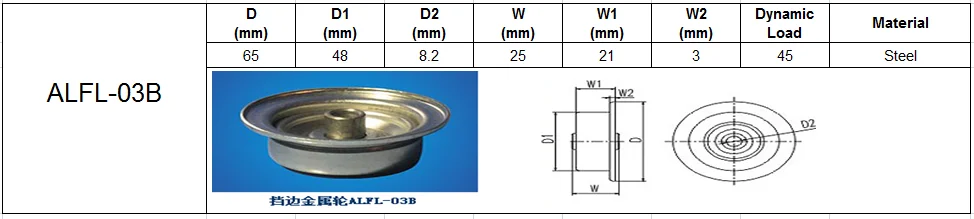

Skate wheel:





Feature:



    Skate wheel series products are all small in size and light in weight, they are suitable  to transport flat-bottom items, usually used in the curve part of logistic convey systerm or its separate and combined part. Skate wheels also can be used as barrier and guide, and also can used for goods shelf.

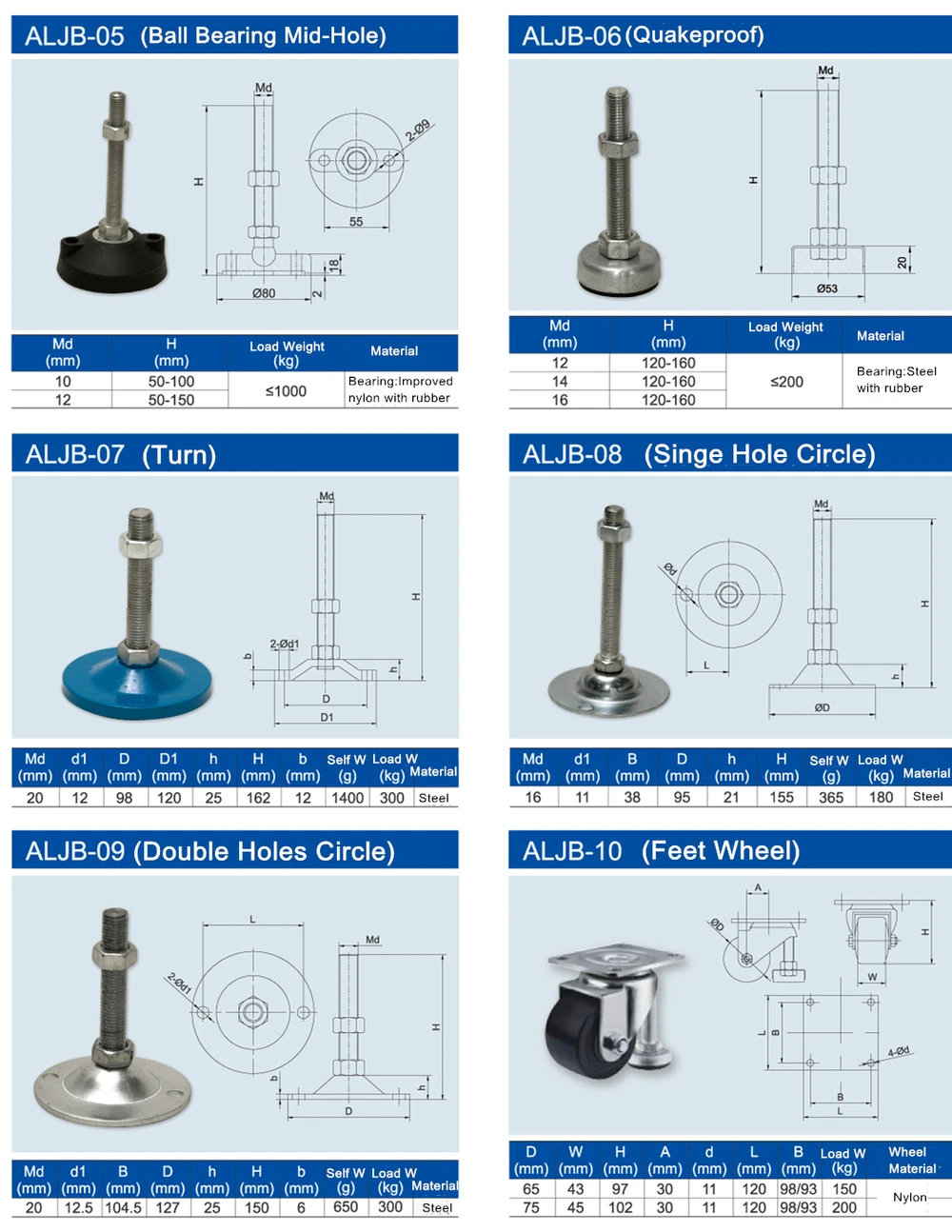

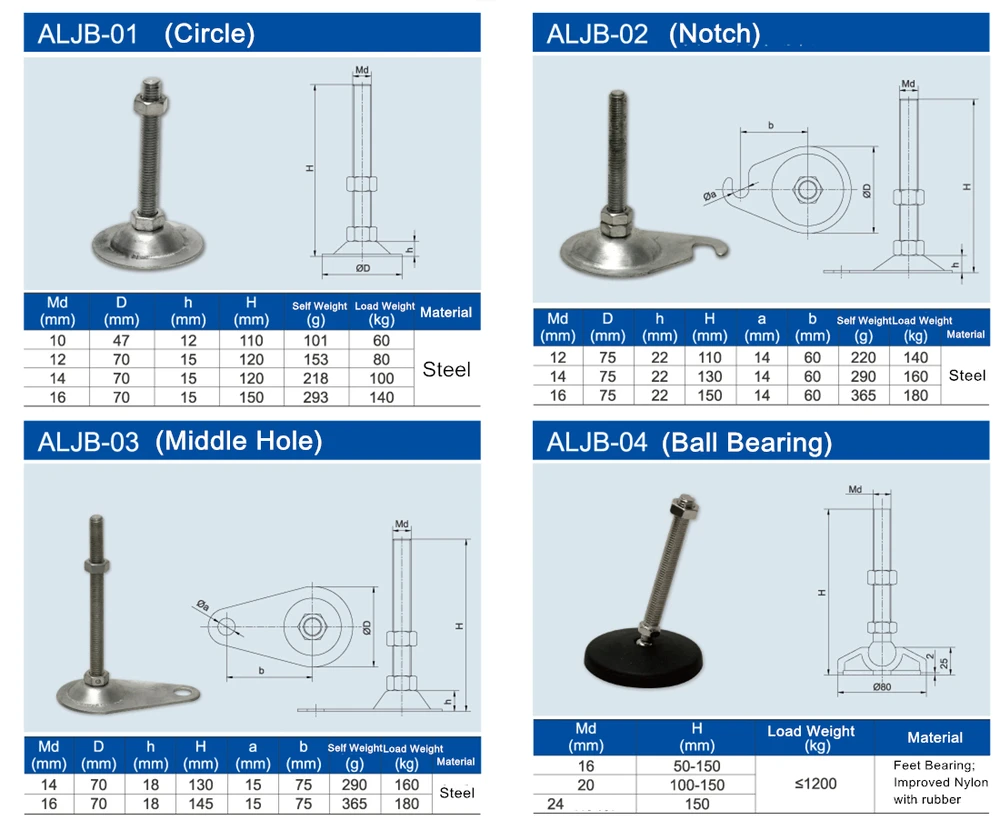

Adjustable feet











 Feature:

  Our products are widely used for the horizontal and height adjustment of conveyor and other machine equipment.Made of different materials(Stainless steel,Carton steel,Engineering Plastic) could apply for various environment,it's widespread and absolutalutely necessary.

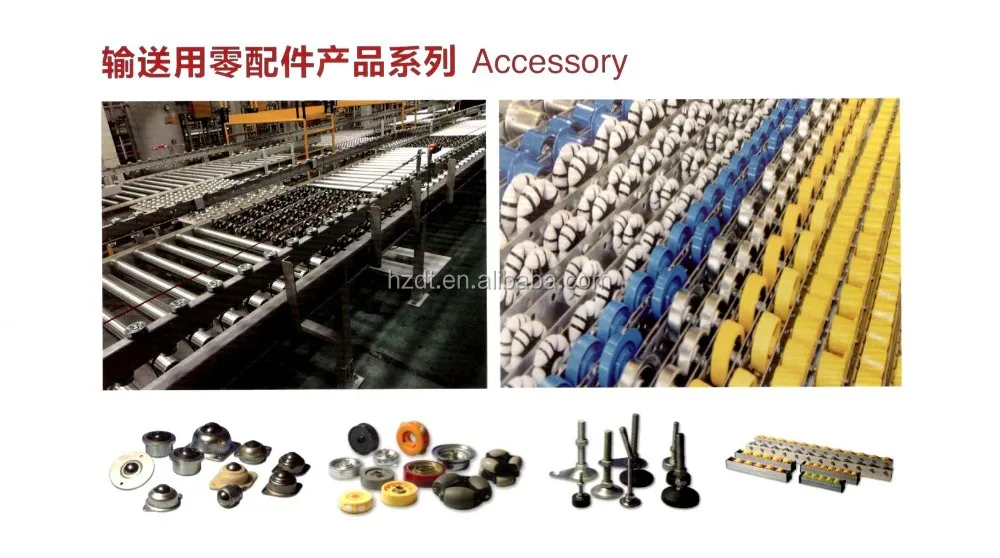

Others:

conveyor accessories.jpg
