Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: XINGLI
  • Model Number: AL2523 tapered conveyor roller
  • Description: Curve conveyor roller series 2523 series tapered conveyor roller
  • Keyword: tapered sleeve roller
  • Application: double chain driving curved roller conveyor
  • Material: PVC/Galvanized steel
  • Load capacity: light/Middle duty
  • Bearing: Precision Bearing
  • shaft Dia.: 12mm shaft conveyor roller
  • Taper: 3.6 tapered sprocket roller
  • Tooth: 14
  • Size: Customized Size

Packaging & Delivery

Packaging Details tapered conveyor roller Packed by: metal carton, standard export package
Delivery Time Shipped in 15 days after payment











Product detail.

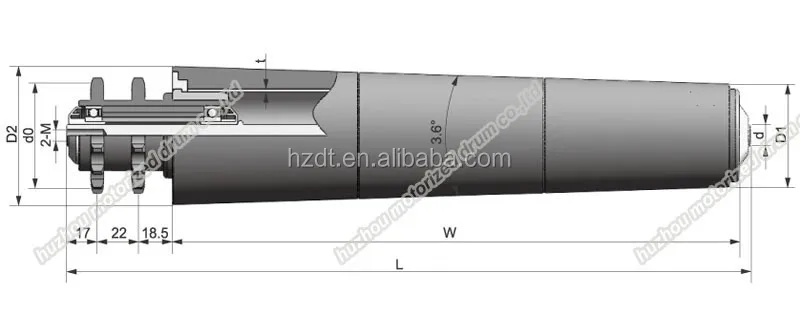

 Tapered conveyor roller



Curve conveyor roller series 2523 series tapered conveyor roller
. Standard tapering is 3.6 degree
. Smooth operation, low-noise, excellent performance

W
D2D1dSprocket
Z/PSS
305Φ74.5Φ55.6Φ12

08B14T

405Φ80.5
505Φ87.1
605Φ93.4
705Φ99.6
805Φ105.9
Roller type:gravity roller,sprocket roller,motor roller,brake roller,idler roller etc.

Roller size:16mm to 800mm.



All kinds of conveyor roller specification table

Tube size

mm

Axle size

mm

Tube Material

Surface treatment

Erecting structure

Φ16

Φ6

Carbon steel,

Stainless steel

PVC ,HDPE,

Aluminium alloy

















Galvanization/

Hot dip galvanized/

chromeplate/

Coated rubber

Coated PU

Paint

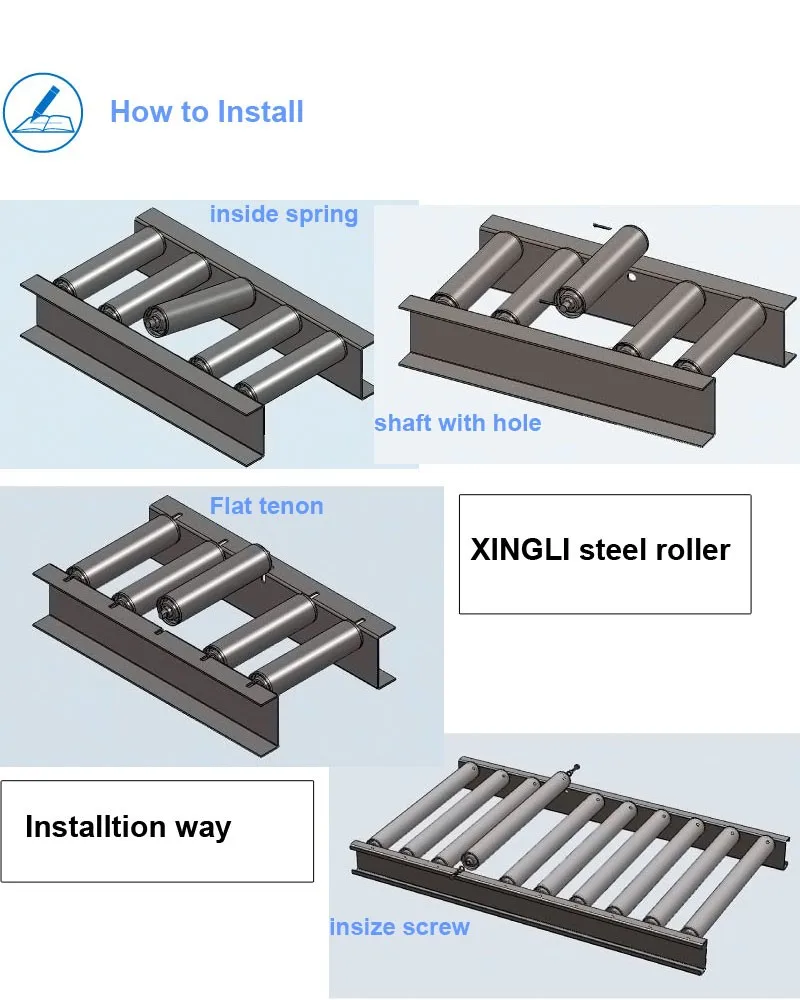

A.spring shaft B.fixed shaft C.inside thread D.outside thread E.oblate tenon F.semicircular tenon



Φ20

Φ8

Φ25

Φ8

Φ30

Φ8

Φ32

Φ8

Φ38

Φ12

Φ40

Φ10,12

Φ42

Φ12

Φ48

Φ10,12,15

Φ50

Φ10,12,15,17,20

Φ57

Φ12

Φ60

Φ12,15,20

Φ63.5

Φ12,15,17

Φ76

Φ15,20

Φ80

Φ17,20

Φ89

Φ20

Φ108

Φ20



All kinds of sprocket roller specification table

Tube size

mm

Axle size

mm

Tube Material

Surface treatment

The chain form

Φ38

Φ12







Carbon steel



Galvanization/

Hot dip galvanized/

chromeplate/

Coated rubber

Coated Pu





Single chain,

Double chain

Φ50

Φ10,12,15,17,20

Φ57

Φ12

Φ60

Φ12,15,20

Φ76

Φ15,20

Φ80

Φ17,20

Φ89

Φ20,25

Φ108

Φ20,25

Φ133

Φ20,25

Φ158

Φ30,38



PVC roller specification table

Tube size

mm

Axle size

mm

Tube Color

Erecting structure

Φ16

Φ5,



Blue, White,

Blace, Yellew,

Gray, Red etc.





A.spring shaft B.fixed shaft C.inside thread D.outside thread E.oblate tenon F.semicircular tenon

Φ20

Φ6

Φ38

Φ10,12

Φ50

Φ10,12,15

Φ60

Φ12, 15

Φ76

Φ15,,20



All kinds of HDPE Idler specification table

Tube size

mm

Axle size

mm

Tube Material

Surface treatment

Φ76

Φ20



HDPE



Soomth

Φ89

Φ20

Φ108

Φ20/25

Φ133

Φ20/25

Φ159

Φ25/30



All kinds of Idler roller specification table

Tube size

mm

Axle size

mm

Belt width

mm

Bearing

type

Tube material

Surface treatment

Φ60











Φ15

Φ20

Φ25

Φ30

Φ35

Φ40



400

450

500

600

750

900

1050

1200

1400

1600

1800

2000

2200

2600

2800



Single row

deep groove

ball bearing

2RS or ZZ



4G204

4G205,

4G206,

4G305,

4G306

4G308













Carbon steel,

HDPE













Paint,

Powder paint

Φ63.5

Φ76

Φ89

Φ102

Φ108

Φ114

Φ127

Φ133

Φ139

Φ152

Φ159

Φ167

Φ178

Φ194

Φ219

Other size can design according to customer’s request







How to order .











Shipment.



1.For sample, we will normally ship out in 3-5 working days after confirming its design drawing and please do payment before shippment. The sample items can be shipped by DHL/EMS/FEDEX/UPS etc. Or any other methods which is convenient for our customers.

2.For bulk order, we will normally do shippment in 15-20working days after your payment and design drawing confirmation. All the products will be packed well with standard export package to make sure their safety during transportation.





FAQ



1. Can I get sample?



Yes, sample orders welcomed



2. Have tapered conveyor roller sprocket roller 100% assembled well in stock?



No, all tapered sprocket roller will be newly produced according to your orders including sample



3. Could i use my own LOGO or design for goods?



Yes, customized logo and design are available



4. Can i choose the color?



Yes, customized color is acceptable



5. What will be the delivery time?



A week for sample orders, 15-30 days for bulk orders



6. What will be the payment term?



T/T, L/C, Western Union, Paypal etc., it is flexible



7. Can i trust you?



Absolutely yes, we are alibaba verifled supplier



8. May I visit your factory?



Sure, welcome any time, we can also pick you up at airport and station, please let us know
